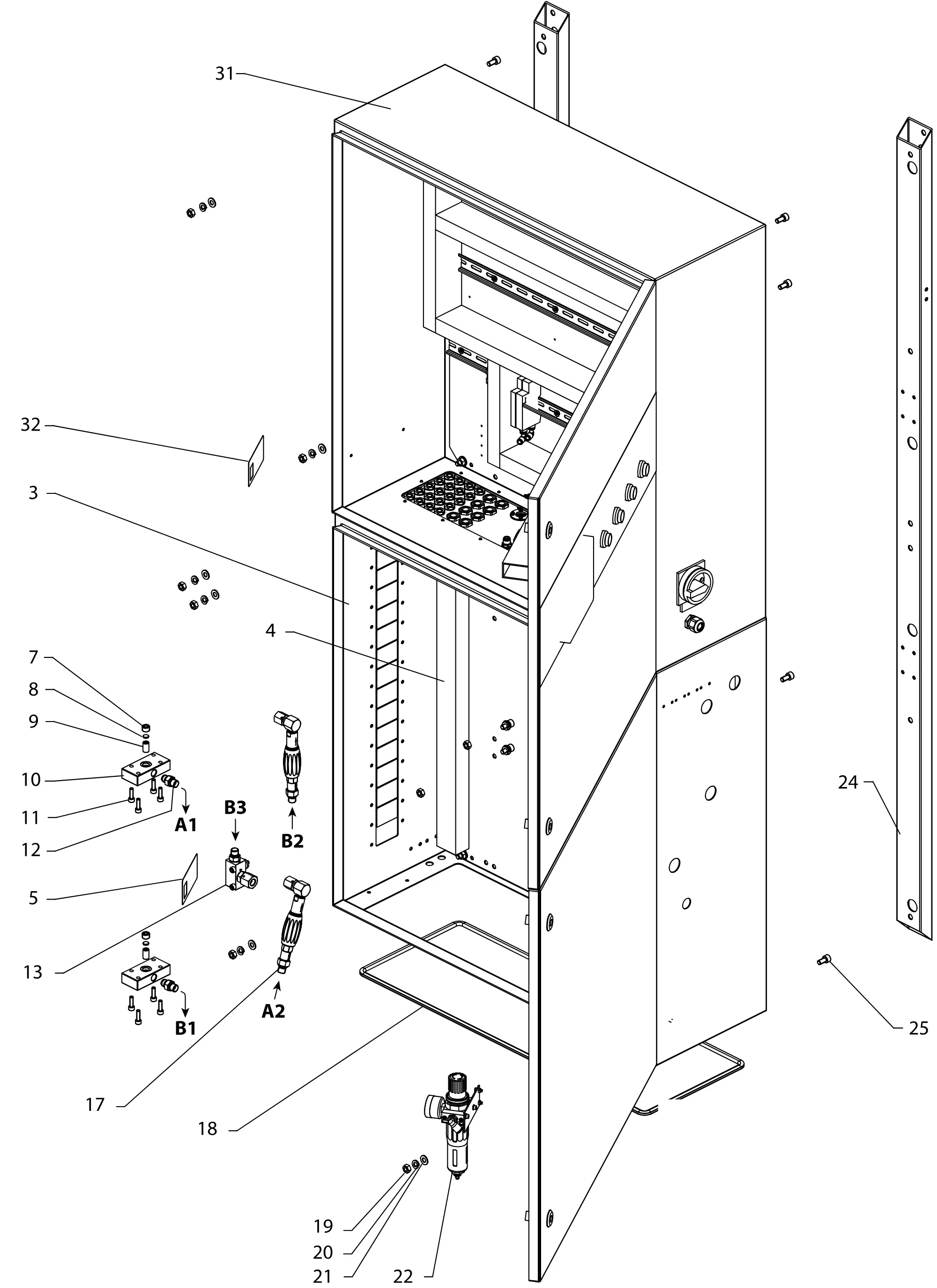

Wagner SC 2K Comfort Base Module (Non-Ex) parts diagram Base module (fluid cabinet) of the non-Ex Wagner SC 2K Comfort, with wall mounts, end plates, inline filters and the HP hoses between the dosing valves and the mixing block. Click a number on the drawing to see the part, its price and add it to your cart.
3 4 5 7 8 9 10 11 12 13 17 18 19 20 21 22 24 25 27 27 28 28 29 31 32 Show numbers
1 Base Module, Non-Ex (complete) Listed in assembly Not on drawing Request a quote 3 Fluid Cabinet 800x800x300 Part no. 2355417 in components Request a quote 4 Cable Conduit Part no. 2357998 in electrical & measuring Request a quote 5 Type Plate, Fluid Section Listed in components Not sold separately 7 Screw Plug Part no. 104376 in fittings $22.77 Select part 7 8 Plug Part no. 384323 in fittings $19.06 Select part 8 9 Filler Part for End Plate Part no. 2356333 in components $49.05 Select part 9 10 End Plate Part no. 2356015 in components $217.06 Select part 10 11 Hexagon Socket Cap Screw, M6x20 Part no. 9900312 in hardware Request a quote 12 Fitting DF-MM-G1/4-G1/4-530 bar-SSt Part no. 2331174 in fittings $58.57 Select part 12 13 Mixing Block Set Listed in assembly Request a quote 17 Inline Filter HL DN6-PN530-G1/4"-SSt Part no. 2329026 in filters $519.05 Select part 17 18 Edge Protector Part no. 9998066 in components $28.46 Select part 18 19 Hexagon Nut, M8 Part no. 9910107 in hardware Request a quote 20 Lock Washer, A8 Part no. 9921501 in hardware Request a quote 21 Washer, A8.4 Part no. 9920102 in hardware $2.66 Select part 21 22 Air Supply, Non-Ex Listed in assembly Request a quote 24 Wall Mount, 2K Comfort Part no. 2355797 in hardware $174.72 Select part 24 25 Hexagon Socket Head Cap Screw Part no. 9900326 in hardware Request a quote 27 HP Hose DN6-PN325 FEP W-G 0.67 m Part no. 2333791 in hoses & tubes $351.46 Select part 27 28 HP Hose DN6-PN325 FEP W-G 0.97 m Part no. 2357479 in hoses & tubes Request a quote 29 HP Hose DN6-PN325 FEP G-G 0.505 m Part no. 2340038 in hoses & tubes Request a quote 31 Control Cabinet, 2K Comfort Listed in assembly Request a quote 32 Type Plate, Control Cabinet Listed in components Not sold separately K1 USB Stick for 2K Comfort Part no. 2359808 in electrical & measuring Not on drawing Request a quote No parts match. Clear the search or pick All.
0 parts selected
Select wear parts Add to cart
