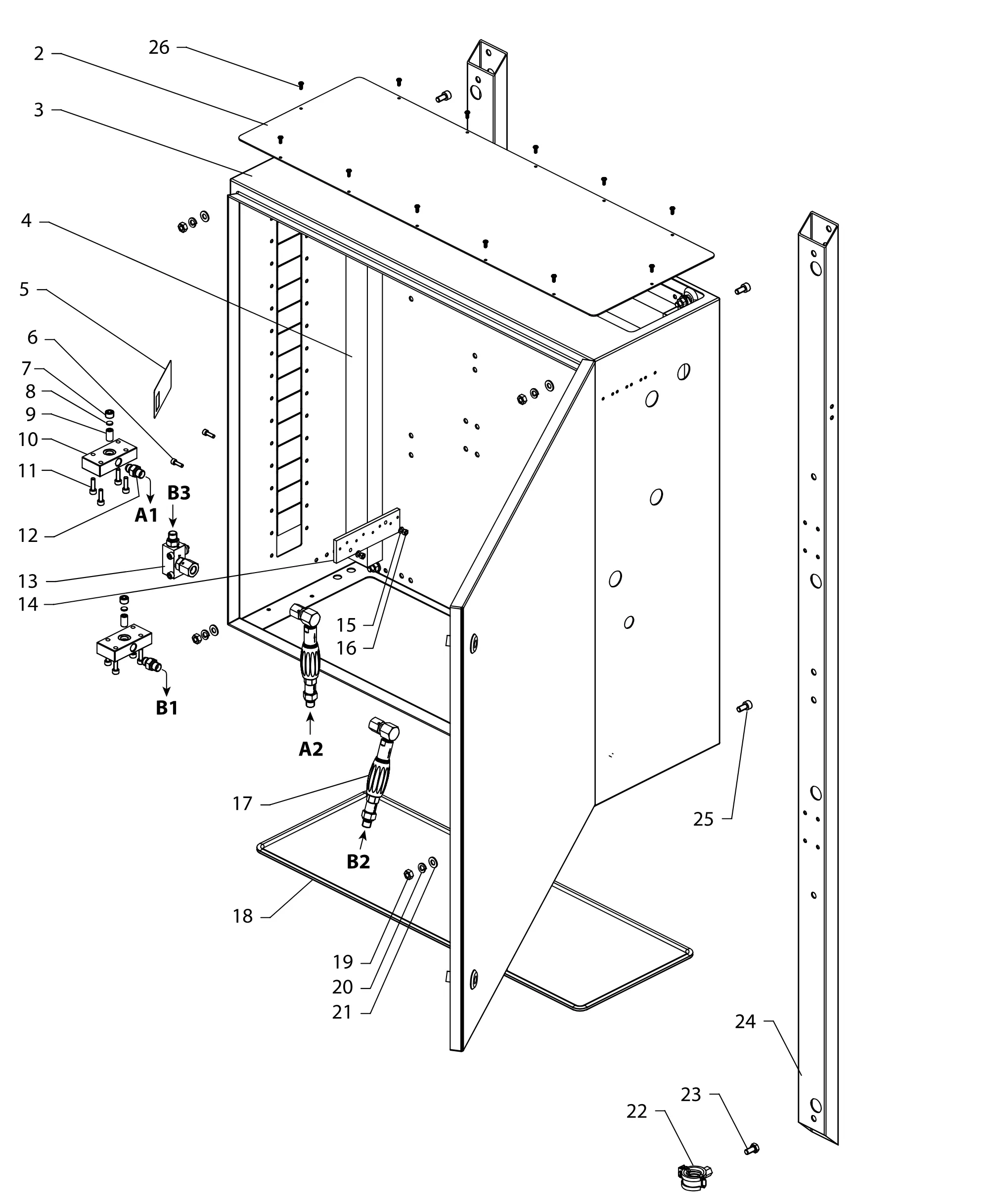

Wagner SC 2K Comfort Base Module (Ex) – Fluid Cabinet parts diagram Fluid cabinet side of the Ex (explosion-proof) Wagner SC 2K Comfort base module: cabinet, cover, wall mounts, Ex valve plate, inline filters and the HP hoses to the mixing block. Click a number on the drawing to see the part, its price and add it to your cart.
2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 27 28 28 29 Show numbers
1 Base Module, Ex (complete) Listed in assembly Not on drawing Request a quote 2 Fluid Cabinet Cover, Ex Part no. 2356826 in components $269.60 Select part 2 3 Fluid Cabinet 800x800x300 Part no. 2355417 in components Request a quote 4 Cable Conduit Part no. 2357998 in electrical & measuring Request a quote 5 Type Plate Fluid Section, Ex Listed in components Not sold separately 6 Hexagon Socket Cylinder Head Screw Part no. 9900307 in hardware Request a quote 7 Screw Plug Part no. 104376 in fittings $22.77 Select part 7 8 Plug Part no. 384323 in fittings $19.06 Select part 8 9 Filler Part for End Plate Part no. 2356333 in components $49.05 Select part 9 10 End Plate Part no. 2356015 in components $217.06 Select part 10 11 Hexagon Socket Cap Screw, M6x20 Part no. 9900312 in hardware Request a quote 12 Fitting DF-MM-G1/4-G1/4-530 bar-SSt Part no. 2331174 in fittings $58.57 Select part 12 13 Mixing Block Set Listed in assembly Request a quote 14 Plate Ex-Valve Part no. 384445 in valves Request a quote 15 Washer, B5.3 Part no. 9920101 in hardware Request a quote 16 Hexagon Nut, M5 Part no. 9910106 in hardware Request a quote 17 Inline Filter HL DN6-PN530-G1/4"-SSt Part no. 2329026 in filters $519.05 Select part 17 18 Edge Protector Part no. 9998066 in components $28.46 Select part 18 19 Hexagon Nut, M8 Part no. 9910107 in hardware Request a quote 20 Lock Washer, A8 Part no. 9921501 in hardware Request a quote 21 Washer, A8.4 Part no. 9920102 in hardware $2.66 Select part 21 22 Pipe Clamp Part no. 9998909 in hardware $29.82 Select part 22 23 Hexagon Screw without Shaft Part no. 9900221 in hardware Request a quote 24 Wall Mount, 2K Comfort Part no. 2355797 in hardware $174.72 Select part 24 25 Hexagon Socket Head Cap Screw Part no. 9900326 in hardware Request a quote 26 Hexagon Drilling Screw Part no. 9907220 in hardware Request a quote 27 HP Hose DN6-PN325 FEP W-G 0.67 m Part no. 2333791 in hoses & tubes $351.46 Select part 27 28 HP Hose DN6-PN325 FEP W-G 0.97 m Part no. 2357479 in hoses & tubes Request a quote 29 HP Hose DN6-PN325 FEP W-G 0.52 m Part no. 2333779 in hoses & tubes $380.98 Select part 29 30 Compressed Air Supply 1/4", Ex Listed in assembly Not on drawing Request a quote 31 Control Cabinet, 2K Comfort Listed in assembly Not on drawing Request a quote 32 Type Plate, Ex Control Cabinet Listed in components Not on drawing Not sold separately 33 Recessed Head Fillister Self-Tapping Screw F, H Form Part no. 9902225 in hardware Not on drawing $1.46 Select part 33 34 Insulating Plate Listed in components Not on drawing Not sold separately 35 T-Rail Part no. 9950344 in components Not on drawing Request a quote 36 Ground Lead Terminal 4 Part no. 3111035 in electrical & measuring Not on drawing $9.87 Select part 36 37 Bracket Part no. 9955327 in hardware Not on drawing Request a quote K1 USB Stick for 2K Comfort Part no. 2359808 in electrical & measuring Not on drawing Request a quote No parts match. Clear the search or pick All.
0 parts selected
Select wear parts Add to cart
