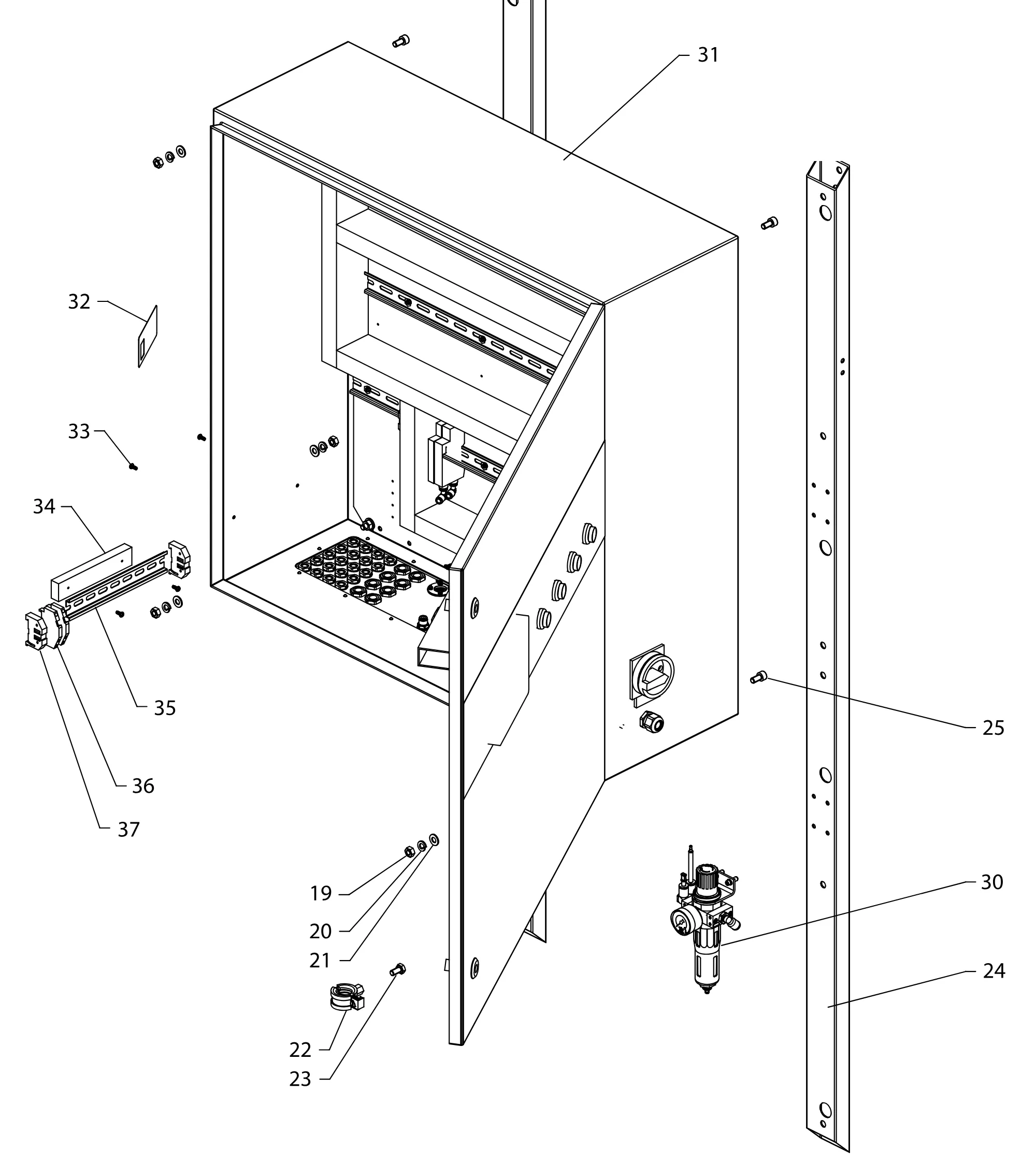

Wagner SC 2K Comfort Base Module (Ex) – Control Cabinet parts diagram Control cabinet side of the Ex (explosion-proof) Wagner SC 2K Comfort base module: control cabinet, wall mounts, T-rail, ground terminals and compressed air supply. Click a number on the drawing to see the part, its price and add it to your cart.
19 20 21 22 23 24 25 30 31 32 33 34 35 36 37 Show numbers
1 Base Module, Ex (complete) Listed in assembly Not on drawing Request a quote 2 Fluid Cabinet Cover, Ex Part no. 2356826 in components Not on drawing $269.60 Select part 2 3 Fluid Cabinet 800x800x300 Part no. 2355417 in components Not on drawing Request a quote 4 Cable Conduit Part no. 2357998 in electrical & measuring Not on drawing Request a quote 5 Type Plate Fluid Section, Ex Listed in components Not on drawing Not sold separately 6 Hexagon Socket Cylinder Head Screw Part no. 9900307 in hardware Not on drawing Request a quote 7 Screw Plug Part no. 104376 in fittings Not on drawing $22.77 Select part 7 8 Plug Part no. 384323 in fittings Not on drawing $19.06 Select part 8 9 Filler Part for End Plate Part no. 2356333 in components Not on drawing $49.05 Select part 9 10 End Plate Part no. 2356015 in components Not on drawing $217.06 Select part 10 11 Hexagon Socket Cap Screw, M6x20 Part no. 9900312 in hardware Not on drawing Request a quote 12 Fitting DF-MM-G1/4-G1/4-530 bar-SSt Part no. 2331174 in fittings Not on drawing $58.57 Select part 12 13 Mixing Block Set Listed in assembly Not on drawing Request a quote 14 Plate Ex-Valve Part no. 384445 in valves Not on drawing Request a quote 15 Washer, B5.3 Part no. 9920101 in hardware Not on drawing Request a quote 16 Hexagon Nut, M5 Part no. 9910106 in hardware Not on drawing Request a quote 17 Inline Filter HL DN6-PN530-G1/4"-SSt Part no. 2329026 in filters Not on drawing $519.05 Select part 17 18 Edge Protector Part no. 9998066 in components Not on drawing $28.46 Select part 18 19 Hexagon Nut, M8 Part no. 9910107 in hardware Request a quote 20 Lock Washer, A8 Part no. 9921501 in hardware Request a quote 21 Washer, A8.4 Part no. 9920102 in hardware $2.66 Select part 21 22 Pipe Clamp Part no. 9998909 in hardware $29.82 Select part 22 23 Hexagon Screw without Shaft Part no. 9900221 in hardware Request a quote 24 Wall Mount, 2K Comfort Part no. 2355797 in hardware $174.72 Select part 24 25 Hexagon Socket Head Cap Screw Part no. 9900326 in hardware Request a quote 26 Hexagon Drilling Screw Part no. 9907220 in hardware Not on drawing Request a quote 27 HP Hose DN6-PN325 FEP W-G 0.67 m Part no. 2333791 in hoses & tubes Not on drawing $351.46 Select part 27 28 HP Hose DN6-PN325 FEP W-G 0.97 m Part no. 2357479 in hoses & tubes Not on drawing Request a quote 29 HP Hose DN6-PN325 FEP W-G 0.52 m Part no. 2333779 in hoses & tubes Not on drawing $380.98 Select part 29 30 Compressed Air Supply 1/4", Ex Listed in assembly Request a quote 31 Control Cabinet, 2K Comfort Listed in assembly Request a quote 32 Type Plate, Ex Control Cabinet Listed in components Not sold separately 33 Recessed Head Fillister Self-Tapping Screw F, H Form Part no. 9902225 in hardware $1.46 Select part 33 34 Insulating Plate Listed in components Not sold separately 35 T-Rail Part no. 9950344 in components Request a quote 36 Ground Lead Terminal 4 Part no. 3111035 in electrical & measuring $9.87 Select part 36 37 Bracket Part no. 9955327 in hardware Request a quote K1 USB Stick for 2K Comfort Part no. 2359808 in electrical & measuring Not on drawing Request a quote No parts match. Clear the search or pick All.
0 parts selected
Select wear parts Add to cart
