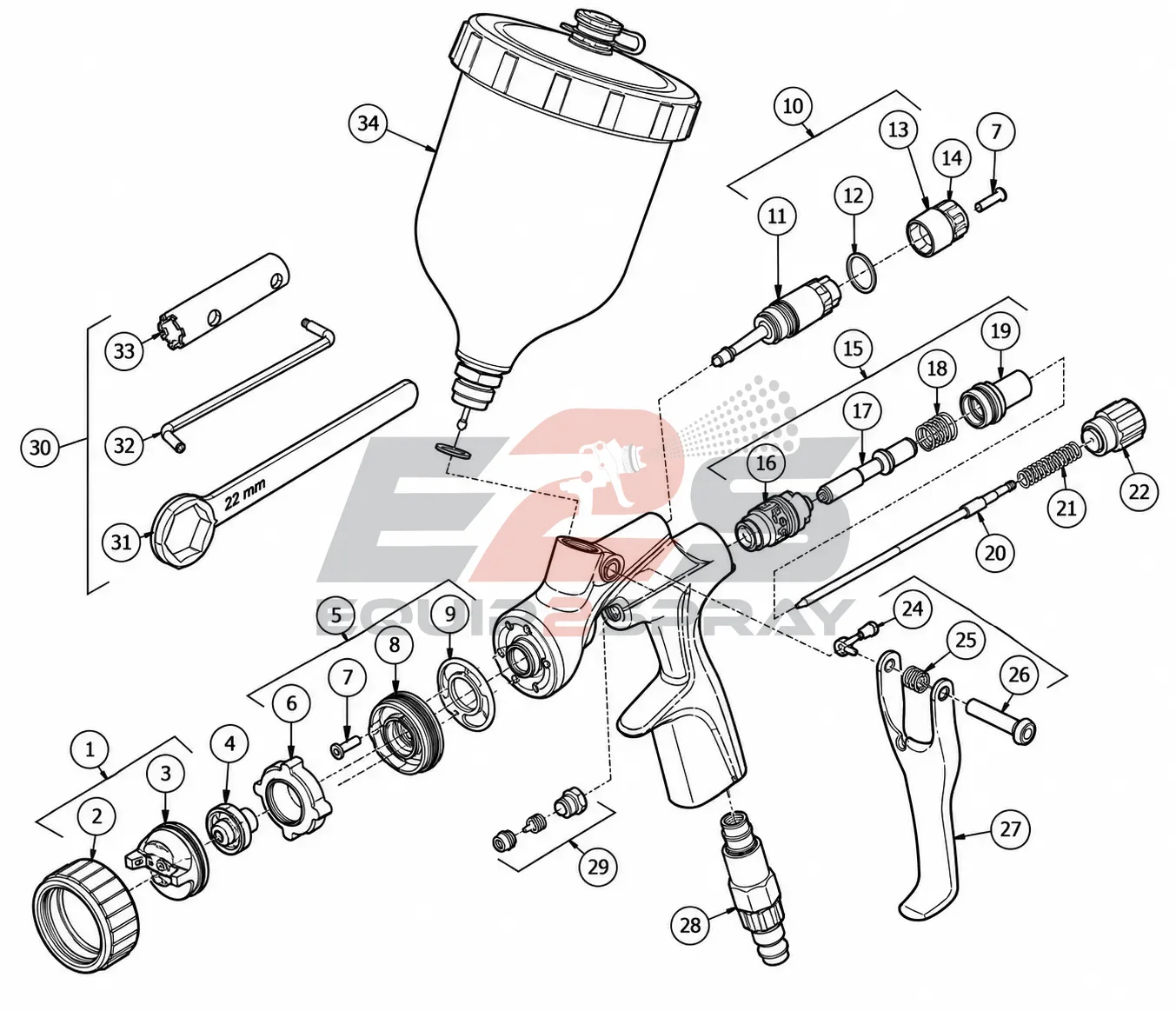

DVX gravity spray gun parts diagram

• 1Air cap & retaining ringChoose from 2 part numbers in air cap2 options
• 2Retaining ring sub assemblyPart no. DVXK-400 in air cap$84.10Select part 2
• 3Air capChoose from 2 part numbers in air cap2 options
• 4Fluid nozzleChoose from 8 part numbers in fluid8 options
• 5Spray head kitPart no. DVXK-401 in spray head$250.85Select part 5
• 6Baffle plateChoose from 2 part numbers in spray head2 options
• 7Screw (kit of 3)Part no. 704403 in spray head$19.07Select part 7
• 8Spray headPart no. DVXK-401 in spray head$250.85Select part 8
• 9Gasket (kit of 2)Part no. 704401 in spray head$55.61Select part 9
• 10Fan control valvePart no. DVXK-403 in fan control$71.27Select part 10
• 11Valve bodyPart no. DVXK-403 in fan control$71.27Select part 11
• 12O-ringChoose from 2 part numbers in fan control2 options
• 13Spreader knob kitPart no. DVXK-404 in fan control$24.94Select part 13
• 14Spreader valve adjusting knobPart no. DVXK-404 in fan control$24.94Select part 14
• 15Air valve assemblyPart no. DVXK-405 in air valve$150.80Select part 15
• 16Front cage assemblyPart no. DVXK-405 in air valve$150.80Select part 16
• 17Air valve stemPart no. DVXK-405 in air valve$150.80Select part 17
• 18Air valve springChoose from 2 part numbers in air valve2 options
• 19Rear seal assemblyPart no. DVXK-405 in air valve$150.80Select part 19
• 20Fluid needleChoose from 2 part numbers in fluid2 options
• 21Needle springPart no. 704405 in fluid$125.43Select part 21
• 22Fluid adjusting knobPart no. DVXK-406 in fluid$24.94Select part 22
• 23Trigger, stud, spring & screw kitPart no. 704406 in trigger$134.85Select part 23
• 24Trigger screwChoose from 2 part numbers in trigger2 options
• 25Trigger springChoose from 2 part numbers in trigger2 options
• 26Trigger studChoose from 2 part numbers in trigger2 options
• 27TriggerPart no. 704406 in trigger$134.85Select part 27
• 28Inline flow valvePart no. 704417 in air valve$152.25Select part 28
• 29Packing, spring & packing nut kitPart no. 702731 in fluid$38.14Select part 29
• 30Tool kitPart no. 704429 in tools$81.20Select part 30
• 31Tip wrenchPart no. 704429 in tools$81.20Select part 31
• 32Torx driverPart no. 704429 in tools$81.20Select part 32
• 33Valve toolPart no. 704429 in tools$81.20Select part 33
• 34Gravity cupPart no. GFC-515 in cup$175.45Select part 34
